Fiber laser marking machine, compact design, easy to operate. High quality product, safe, environmentally friendly, maintenance-free. Widely used, clear and beautiful writing, no wear. Comes with Linux system software, supports straight line, oblique line, arc marking, font library to optimize production to the greatest extent. Very popular in the pipe production line industry.
CO2 flying Laser marking machine
UV flying Laser marking machine
After-sales service: 7×24 professional after-sales online support
Warranty: 2-year warranty
Support customized services
Support free proofing
Support OEM/ODM
Factory direct sales, preferential prices
Email: [email protected]
1. Permanent marking, not easy to be altered twice, high difficulty in anti-counterfeiting and cross-product.
2. No worries caused by dust blockage, the whole machine is maintenance-free
3. No consumables are required, and the service life can reach more than 100,000 hours.
4. The dual red light focusing function greatly reduces the difficulty of operation for workers,
5. Text, graphics, automatic date, shift, serial number, QR code and other information can be edited.
6. One machine has two uses, it can cooperate with the production line to spray code online, or it can be static fixed spray code,
7. Deep marking: high-speed scanning galvanometer can mark the workpiece white, black, and deep.
8. Red light positioning: adopts red light positioning system, which is convenient for positioning and has high positioning accuracy.
| Project | Parameter table | GX-20W | GX-30W |
| Characteristic | Machine material | All aluminum sandblasting oxidation | |
| Laser | The service life is more than 100000 hours | ||
| Laser wavelength | 1064nm | ||
| Output power | ≥18W | ≥26W | |
| Marking speed | ≤12000mm/s | ||
| Controller | 10.2 inch touch controller | ||
| Cooling system | Air cooling | ||
| Parameter | Focus lens | 165mm | |
| Minimum linewidth | 0.012mm | ||
| Repetition accuracy | 0.003mm | ||
| Marking range | 110mm×110mm(optinal) | ||
| Positioning mode | Blue light indication | ||
| Number of rows | Any line within the marking range | ||
| Production line speed | 0~130m/min (depending on the material) | ||
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | |
| Jurisdiction | Multi user management authority | ||
| Operating system | Linux system | ||
| Inkjet mode | Static, analog, encoder | ||
| Reserved signal | Start, print status, finish, fault | ||
| data protection | With power failure data protection energy | ||
| Monitor | Provide removal alarm function | ||
| De crossing | Automatic overspeed of intersections | ||
| Coding software | Single and double machine code sending | ||
| Support type | Typeface | Chinese and English, numbers, traditional, etc | |
| File format | BMP/0Xf/H PGL/JPEG/PLT | ||
| Bar code | CODE39, CODE128, CODE126, QR | ||
| Servicing parameters | Power Supply | 220V/50HZ | |
| Net power consumption | 400W | ||
| Net weight of machine | 28kg | ||
| Overall dimension | 530mm×140mm×165mm | ||
| Environment | Requirement | External temperature 0°C ~ 45°C; humidity ≤95 | |
1.500 information storage capabilities
2.Photoelectric type supports NPN or PNP signal input 15V
3.Powerful filling function, supporting ring filling
4. Communication interface, network port or serial port for data transmission with host computer
5.Quick-plug laser head and power control box and accessories
6. Reserve signal, start printing, printing status, printing completion, fault alarm
7.Coding mode, static coding, analog speed coding, encoder speed coding
8.Variable type code: serial code, time code, TXT file import, scan gun read code
9. WYSIWYG color touch screen, QWERTY or AZERTY virtual keyboard for file navigation
It allows you to automatically scan data from multiple processes from the production line or from an external production line, allowing you to easily complete the automatic detection of multiple process data sources, for example.
Communication software: Data communication is carried out through serial port or network port, and single-machine and dual-machine encoding software are equipped.
Visual rejection: It comes with visual communication protocol, and users can choose this function to achieve seamless integration.
Remote control: It can be connected to the host computer through Ethernet to achieve remote operation in different places.
Protection level: The overall protection level of the controller reaches IP55.
 |
 |
 |

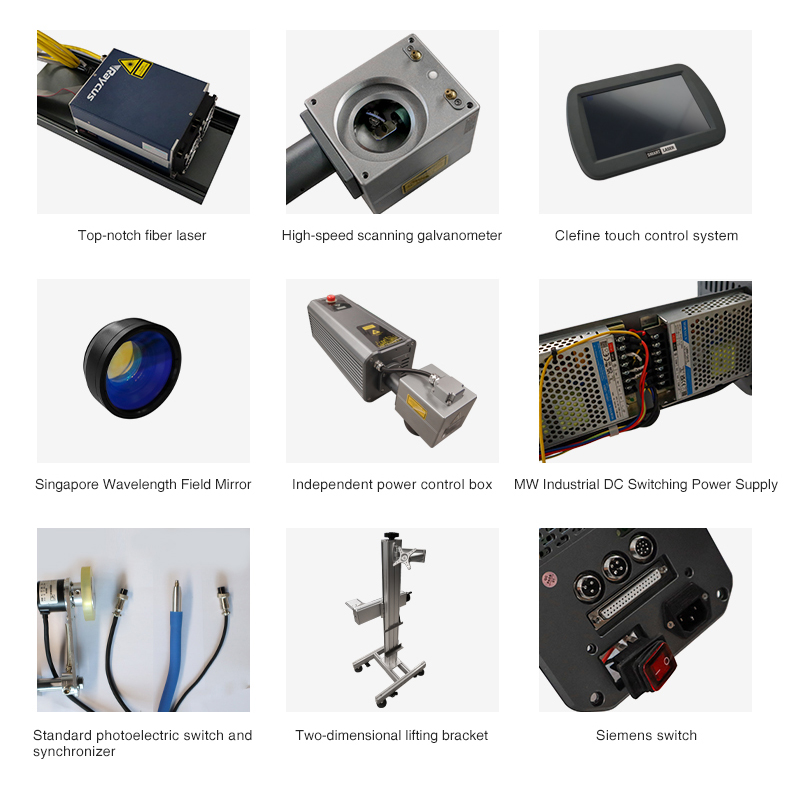

| Clefine touch control system | Singapore wavelength field mirror | Independent power control box |
 |
 |
 |
| MW Industrial DC Switching Power Supply | Standard photoelectric switch andsynchronizer | Two-dimensional lifting bracket |
 |
 |
 |
| Siemens switch | High-speed scanning galvanometer | Top-notch fiber laser |
Flying marking is an indispensable part of laser processing, and is mainly used in the production date, anti-counterfeiting, and pharmaceutical and food packaging industries. First of all, flying marking is a processing method that uses lasers to process objects on the production line. This processing method greatly improves the processing efficiency compared to static processing, and flying marking is increasingly used in production. The laser flying marking machine has a fast speed and a high degree of industrial automation, and does not require additional manual positions.
