CO2 flying laser marking machine, marking speed 12000mm/s, marking area 110mm*110mm, marking power 40W/60W
Marking content: production date, anti-counterfeiting code, date, batch number, barcode, logo, etc.
Marking materials: plastic, metal, wood, leather, glass, paper, etc.
Suitable for use with large-scale production lines and assembly lines.
Email: [email protected]
Super Precision:Marking Minimum 0.03mm
Low Energy:Consumption、no consumables、consumption
High-speed：marking、maximum marking、speed 14000mm/S
| Item | Product Parameter Table | |
|---|---|---|
| Overall Machine Characteristics | Machine material | Sandblasted aluminum |
| Laser Power | 40w/60w | |
| Laser wavelength | Standard 10.6um, optional 10.2um or 9.3um | |
| Marking speed | ≤14000mm/s | |
| Main control | touch controller | |
| Cooling system | air cooling/water cooling | |
| Coding Parameters | Focus lens | 145mm |
| Minimum line width | 0.03mm | |
| Repeat positioning accuracy | 0.01mm | |
| Marking range | Standard 110*110mm, Maximum 600*600mm (Optional) | |
| Positioning method | Red light focusing | |
| Number of marking character lines | Any lines within the marking range | |
| Production line speed | 0~130m/min (depending on material) |

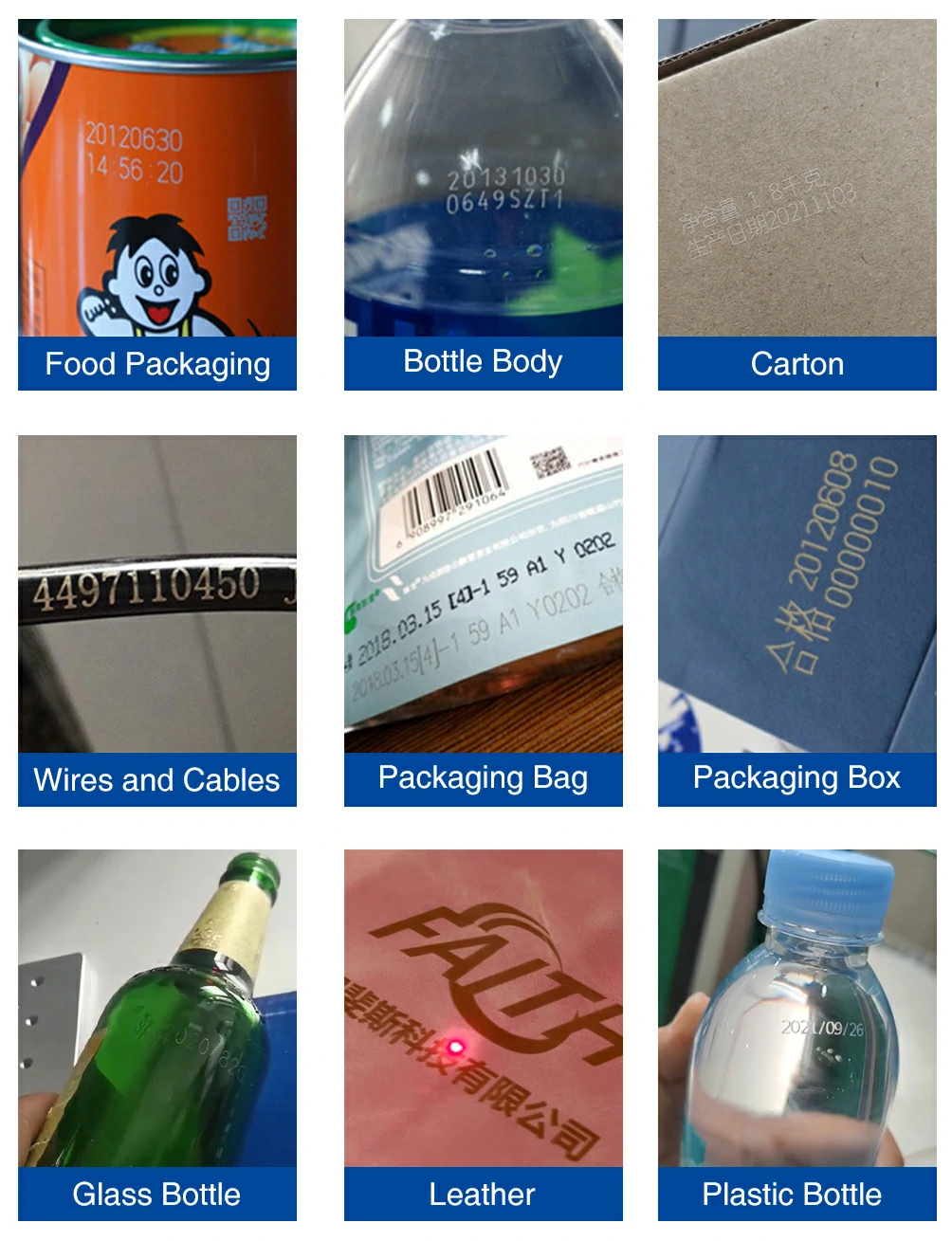

CO2 laser marking machines are widely used in industries such as pharmaceuticals and food packaging, primarily for key applications such as production date marking and anti-counterfeiting label creation. This equipment supports automatic marking of text information such as codes, serial numbers, batch numbers, and dates, while also being compatible with generating graphic codes such as barcodes and QR codes, accurately matching the diverse marking needs of customers in different industries.
For more information, inquiries or to request sample marking, please send an email to [email protected] or fill out the form:
