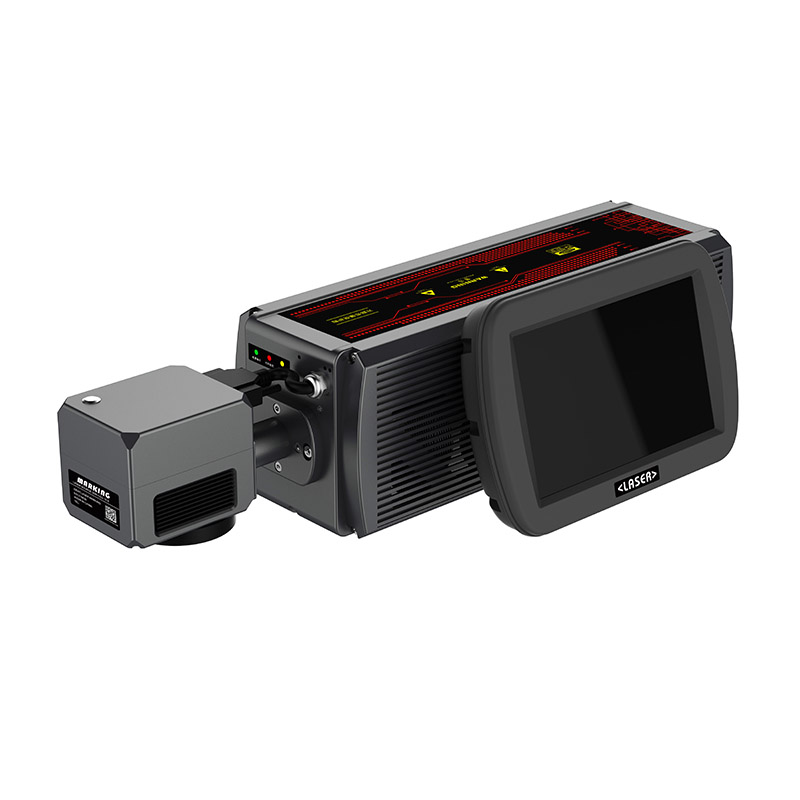

Industrial automatic in-flight CO2 laser marking machine, featuring ultra-precision marking down to 0.03mm, low energy consumption, no consumables, and a maximum marking speed of 14,000 mm/s.
Product speed: 0-130 m/min (depending on the material).
Applicable industries: Medical, food packaging, beverage, logistics, cable, pipe, etc.
Markable content: Auto-coding, serial numbers, batch numbers, production dates, QR codes, etc.
Supports multiple languages: English, French, Spanish, German, Chinese, Russian, Arabic, etc.
Email: [email protected]
1. It provides permanent marking, is not easy to be altered twice, and is difficult to prevent counterfeiting and cross-selling.
2. There is no failure caused by dust blockage, and the whole machine is maintenance-free.
3. There is no consumable operating cost and simple maintenance.
4. The service life of the laser core is more than 20,000-30,000 hours, and it can be inflated and reused.
5. It adopts a touch screen control system, which is simple to operate and easy to use.
6. Special marking software can print text, graphics, date, time, serial number, barcode, automatic number jump and other information.
7. One machine has two uses, and can be used with an automated production line for static fixed marking.
8. It is easy to install, with a 220V power supply, and can be equipped with a production line lifting bracket according to actual needs.
| Laser wavelength | Standard 10.6umoptional 10.2 or 9.3um |
| Cooling system | 30/40W: air cooled、60W: water cooled |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm |
| Marking line speed | ≤12000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Repeatability | +0.002 |
| Marking range | Customizable |

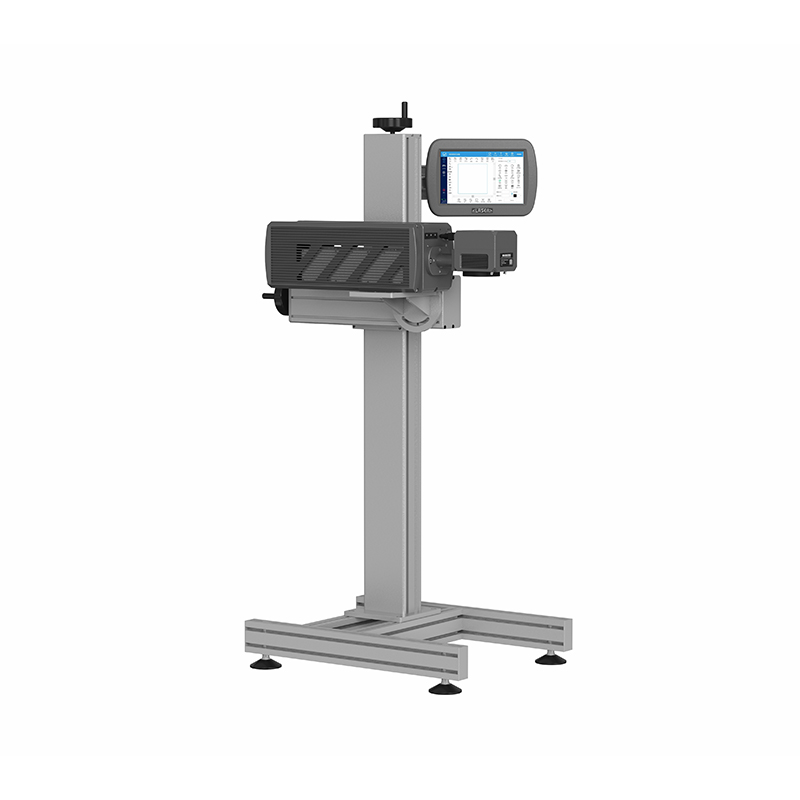

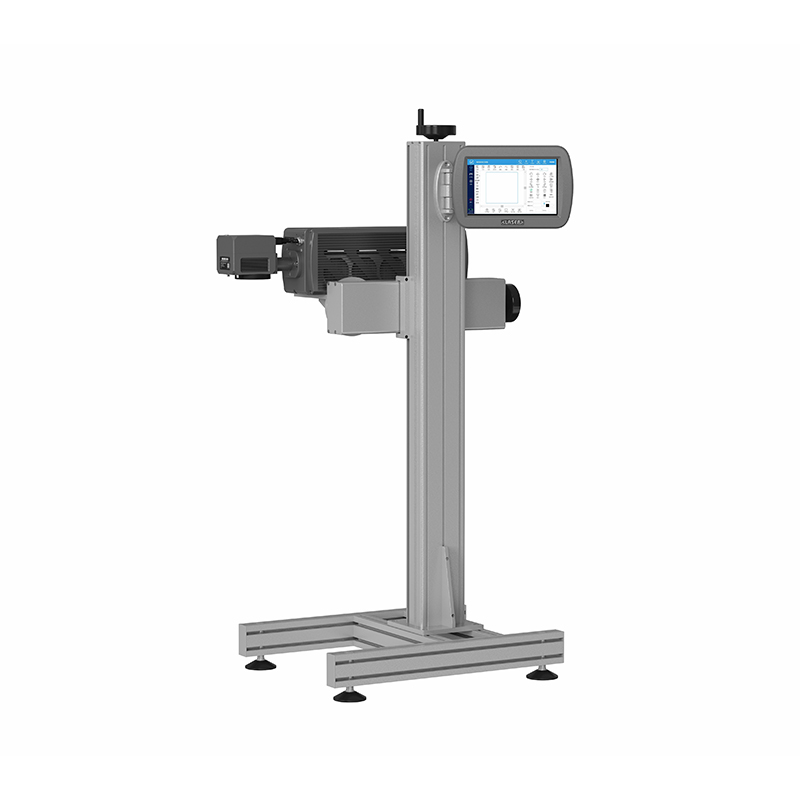

This flying laser marking machine seamlessly integrates with various production lines, enabling high-speed in-line marking and facilitating automated production lines, meeting the efficient marking needs of mass production.

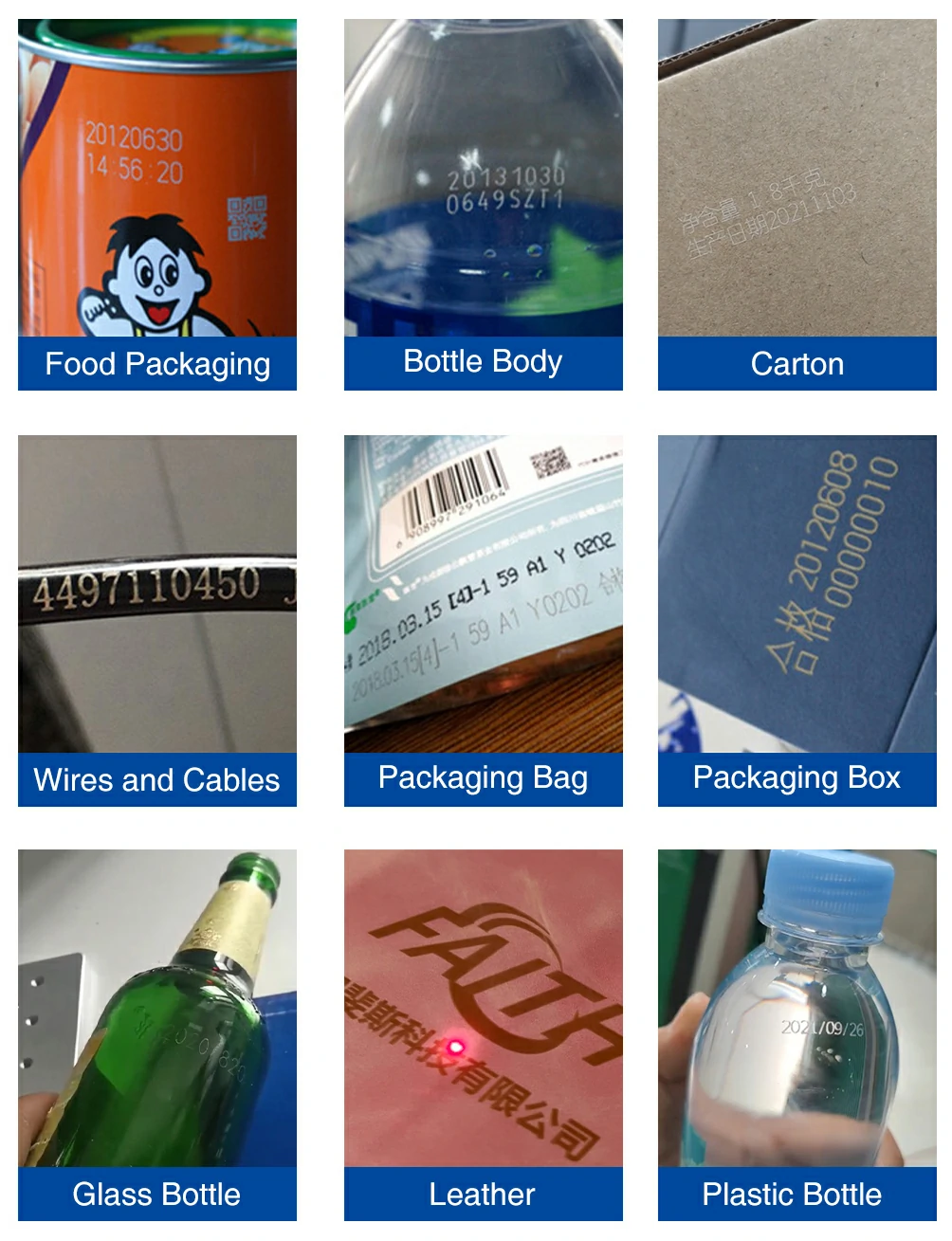

This equipment is customizable for a wide range of applications, including traceability codes and date marking in the food, pharmaceutical, and wine industries; parameter engraving of electronic components and integrated circuits (ICs); and brand marking on electrical appliances, mobile communications products, building materials, and PVC pipes. It precisely meets the compliance and production efficiency requirements of various industries.
