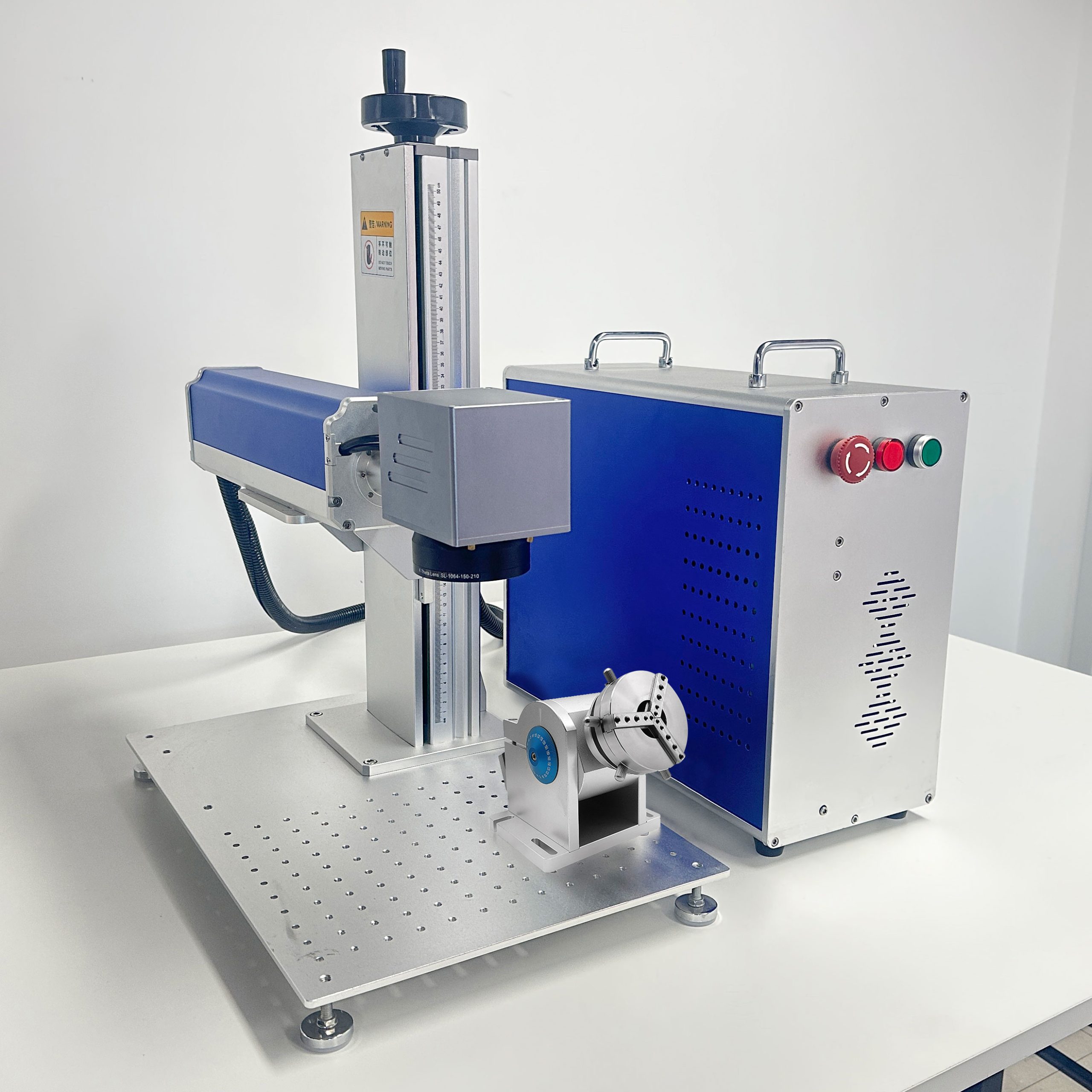

Fiber laser marking machines are used in conjunction with a rotator (or rotating axis) and are ideal for processing cylindrical or rotationally symmetrical arc-shaped metal workpieces. Such workpieces include common circular pipes, annular parts (such as bearings, rings), cylindrical containers, shaft parts, pen holders, etc.
In this application, the workpiece is precisely fixed on a rotating fixture and controlled by the rotator to rotate around its own axis in a stable and controllable manner. The marking software "unfolds" or maps the designed marking content onto the circumferential surface of the workpiece. During the marking process, the laser head usually only needs to scan a straight line or a small area, and through precise synchronization with the rotation of the workpiece, the complete pattern or text can be continuously and evenly marked on the entire arc surface.
Email: [email protected]
1.Professional process research and development to avoid the problem of yellowing and blackening of cutting edges caused by traditional laser cutting.
2. High-performance motherboard, anti-interference, more sufficient data output, continuous carving after interruption, and slope carving.
3. Fast curve cutting function, any curve can be cut quickly and continuously
4. Equipped with power, frequency and speed following functions to effectively reduce corner trimming burrs. Corner energy follows the count, making sharp corner cutting technology more perfect.
5. Path optimization solutions can be designed in the software as needed to shorten processing time and improve efficiency.
6.Cameras, stainless steel floors and other components can be added according to needs or industries to improve technology or efficiency.
| Laser wavelength | 1060nm |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm Marking |
| Line speed | <7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Marking range | Customizable |
| Repeatability | + 0.002 |

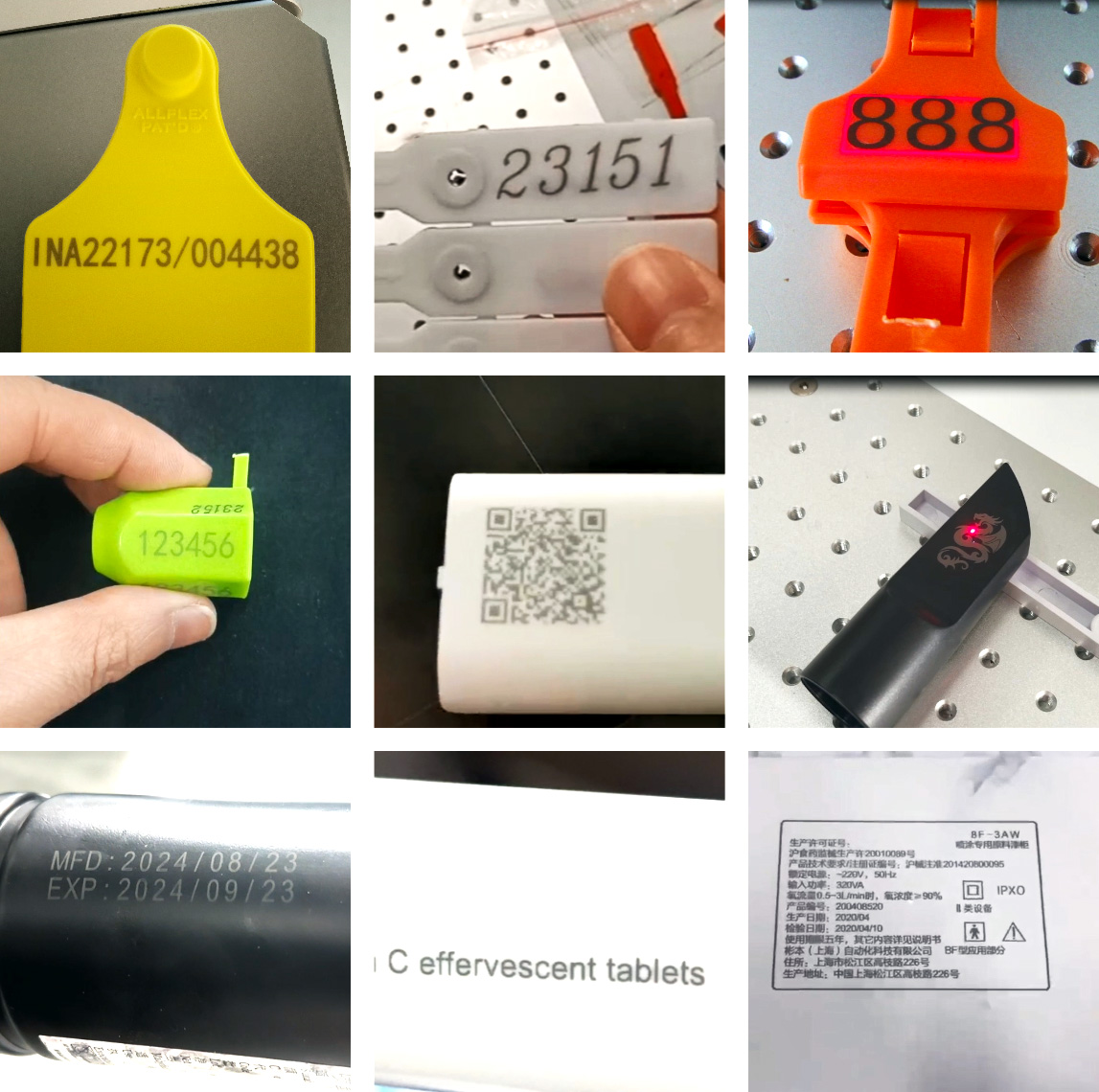

Plastic products are widely used in packaging (such as PET bottles, PP containers), electronics (PC/ABS housings), medical (PP syringes) and automotive parts (ABS dashboards). Laser marking machines are suitable for products that require permanent marking, such as anti-counterfeiting codes for electronic components, sterilization batch numbers for medical devices, FDA information for food packaging, etc. They can mark production dates, serial numbers, LOGOs, QR codes, etc. to meet durability, anti-counterfeiting and compliance requirements. Different plastic materials (such as PET/ABS/PEEK) need to match specific wavelength lasers to ensure clear markings without damaging the product.

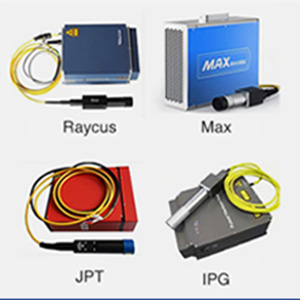

High stability, long lifespan 100,000hours. Raycus/JPT/ MAX/ IPG optional

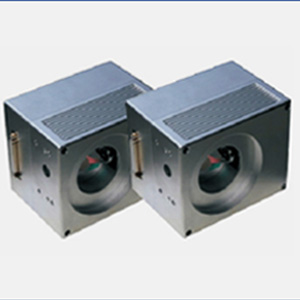

The machine adopts sino-galvo andZBtech high-speed galvanometer to ensure the stability of printing process
Support PLT, PCX, DXF, BMP and other files, and directly use SHX.TTF library. Support barcode fonts, and can set automatic serial number, date and time according to production needs.

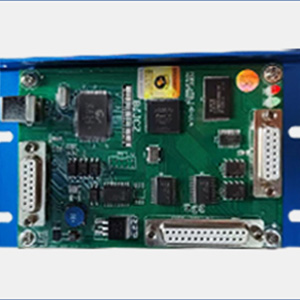

BJjCZ control card with EZCAD2.0software .simple operation,but powerful function: Compatiblewith Windows XP/Vista/7/8/10.
For more information, inquiries or to request sample marking, please send an email to [email protected] or fill out the form:
