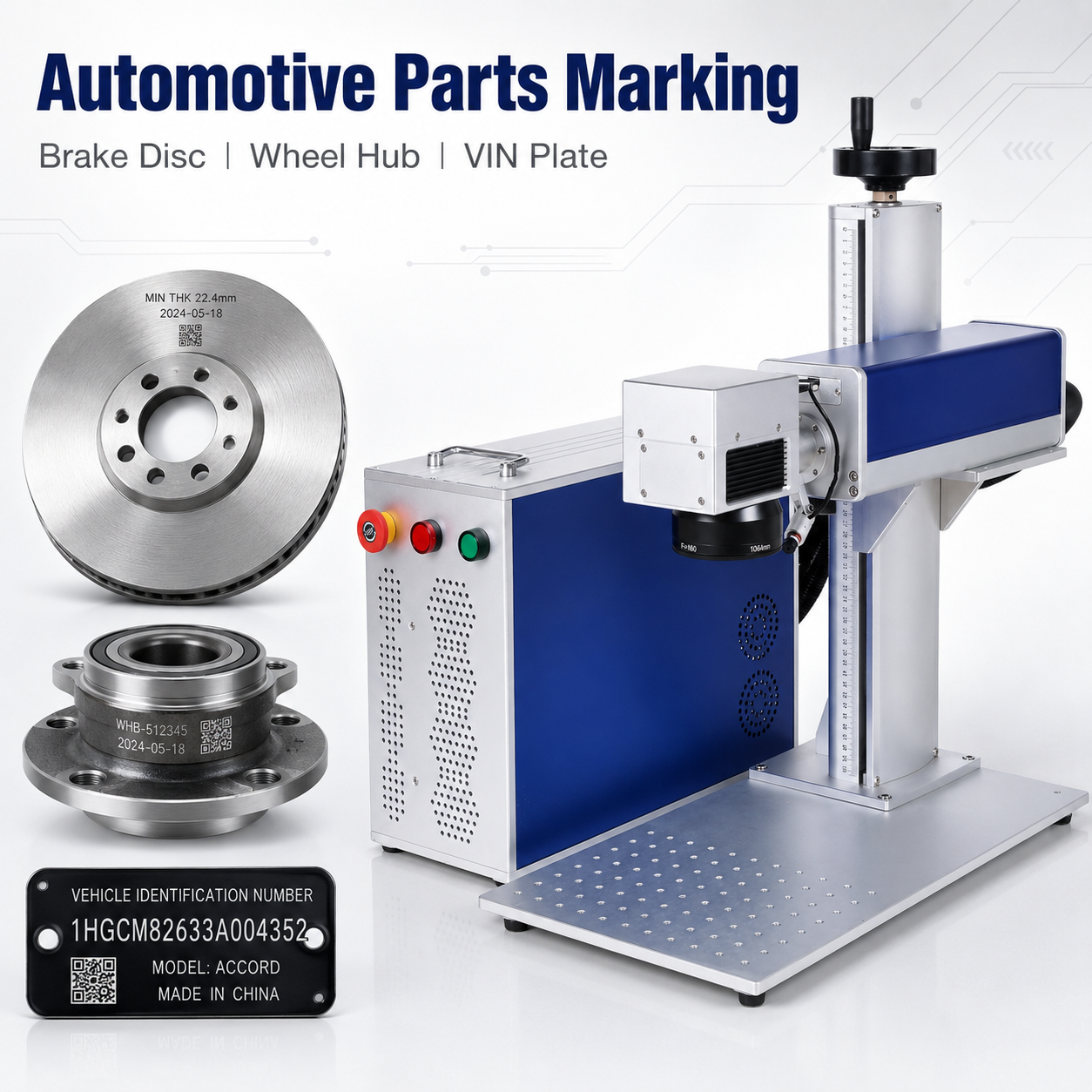

The desktop fiber laser marking machine is a high-precision industrial marking device. Using a fiber laser as its core light source, it features high beam quality, fast marking speed, strong stability, and long service life. Through a computer control system, the machine accurately marks text, patterns, QR codes, serial numbers, and other information onto the surfaces of metal and some non-metallic materials, achieving permanent marking.
This equipment is widely used in industries such as hardware tools, electronic components, automotive parts, medical devices, mold manufacturing, and precision instruments, meeting the high-efficiency, high-consistency marking requirements of mass production. Compared to traditional inkjet or mechanical marking methods, fiber laser marking requires no consumables, has lower maintenance costs, and produces clearer, more wear-resistant, and indelible marks.
The desktop design ensures stable operation, suitable for long-term continuous work. With professional marking software, it can easily achieve automatic layout and complex graphic editing, offering simple operation and suitability for mass production and high-standard industrial marking needs in factories.
Email: [email protected]
WA: +8615710505044
| Laser wavelength | 1060nm |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm Marking |
| Line speed | <7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Marking range | Customizable |
| Repeatability | + 0.002 |
The high-transmittance field lens produced by Singapore Wavelength Company is used. By selecting different field lenses, the marking range can be arbitrarily changed from 12*12cm to 40*40cm.
Manual focus ups and downs Adjust the accurate focal length, easier to carve.
Aluminum worktop with multiple holes for flexible positioning and hidden keyboard drawer.
It can mark various metal and some non-metal,metal alloy materials, plastic, rubber, leather and other materials.
Meet the high-speed production requirements ofautomobile,electronics, medical machinery processing, etc.
