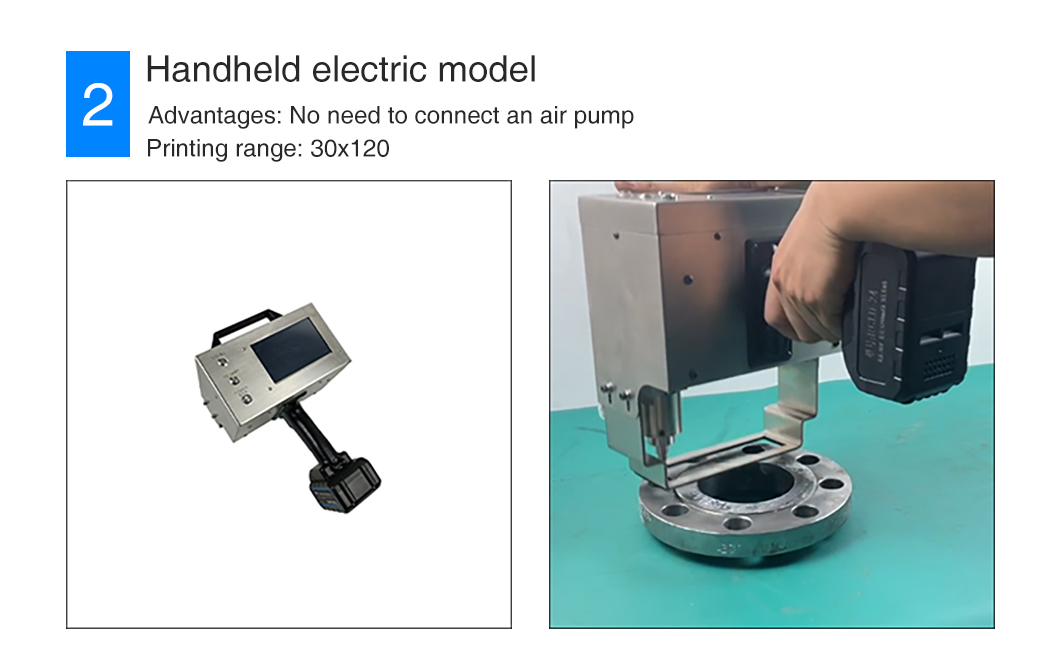

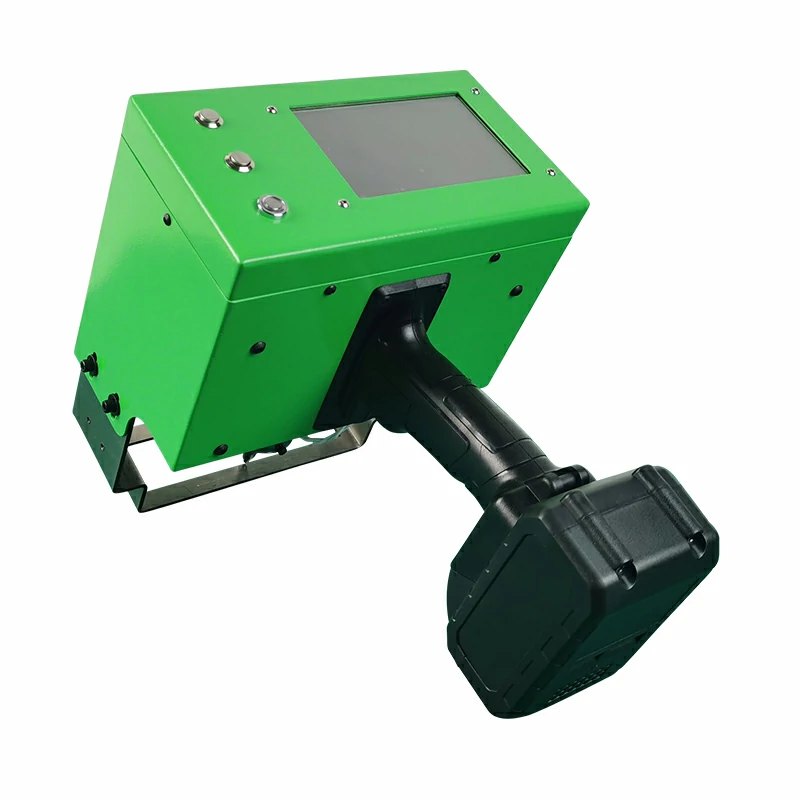

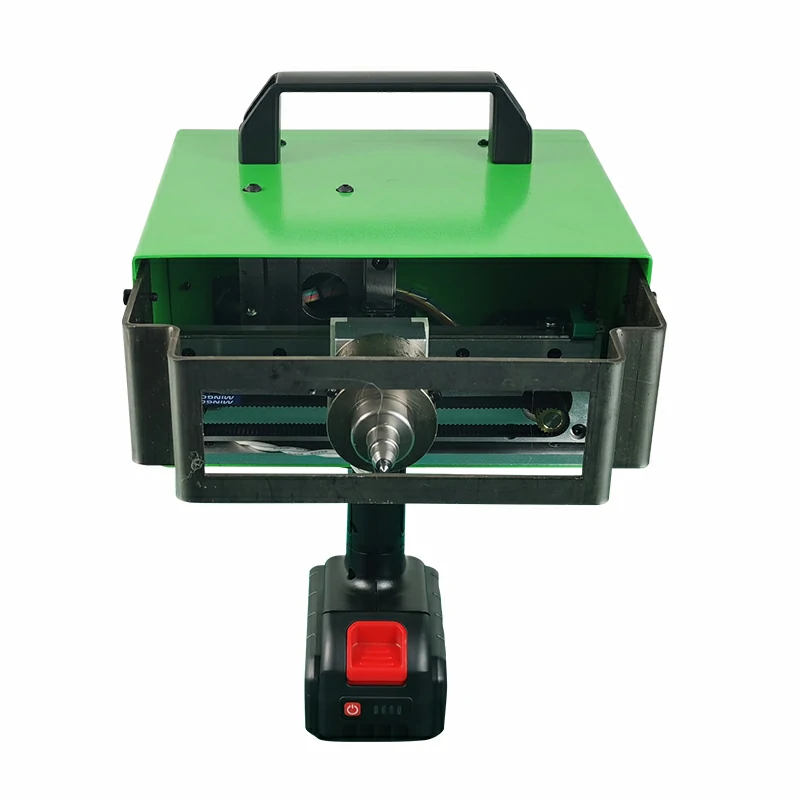

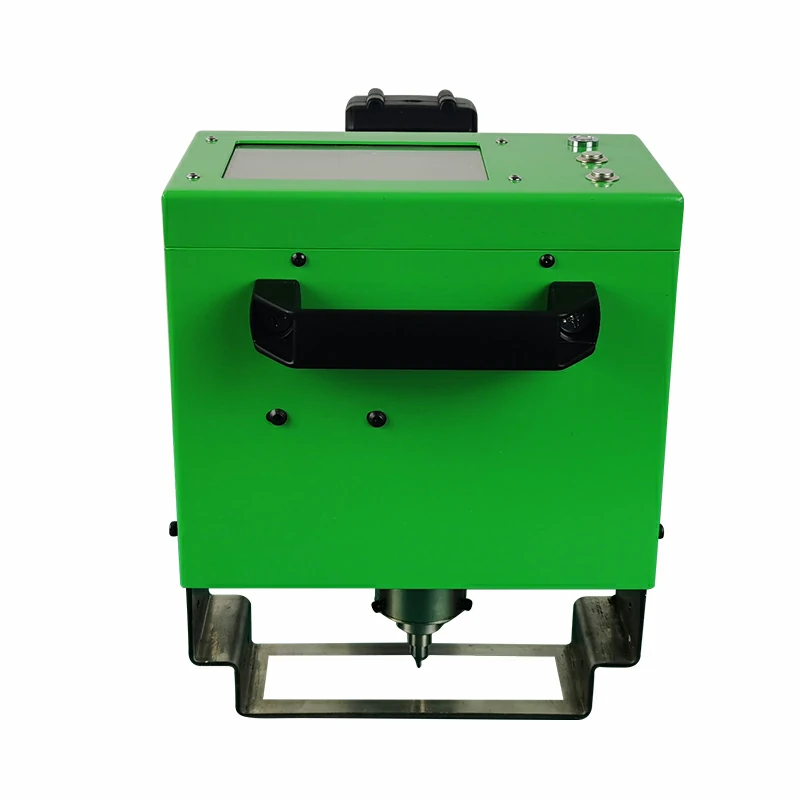

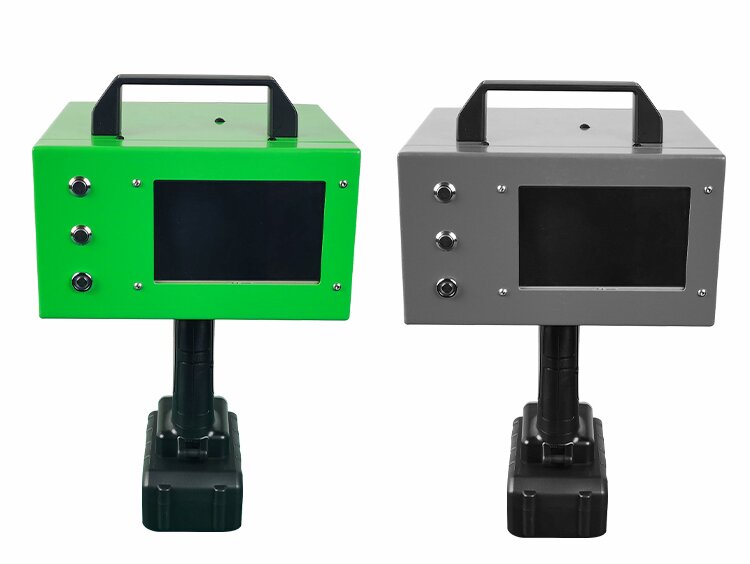

Handheld electric marking machine powered by lithium battery,with long standby time and no cable constraints. Lightweightdesign, efficient driving, suitable for multi-angle marking, strongportability. The dot matrix marking needle assembly adoptshigh hardness alloy needle and electromagnetic coil, with noneed for pneumatic tube connection. Provides a large markingrange and larger font size, reducing operational burden.Low overall energy consumption, low noise, environmentally friendly.
After-sales service: 7×24 professional after-sales online support
Warranty: 2-year warranty
Support customized services
Support free proofing
Support OEM/ODM
Factory direct sales, preferential prices
Email: [email protected]
WA: +8615502499721

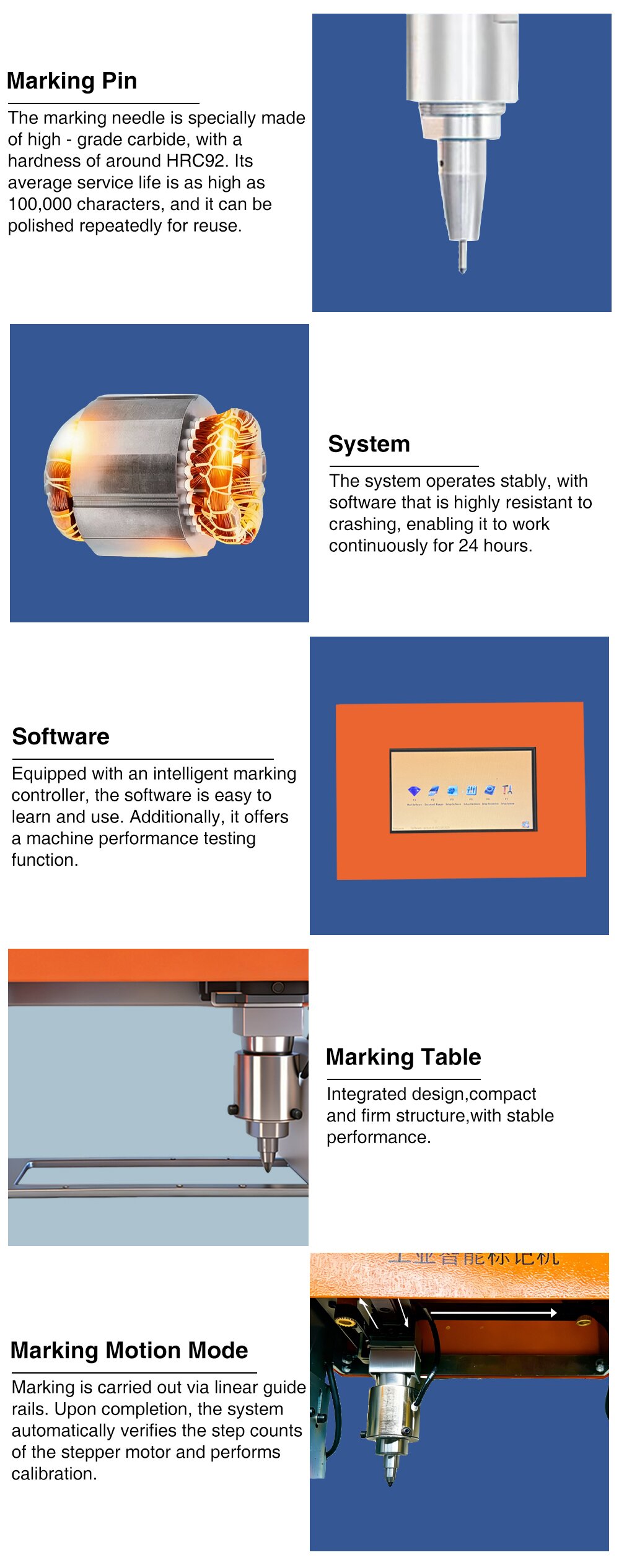

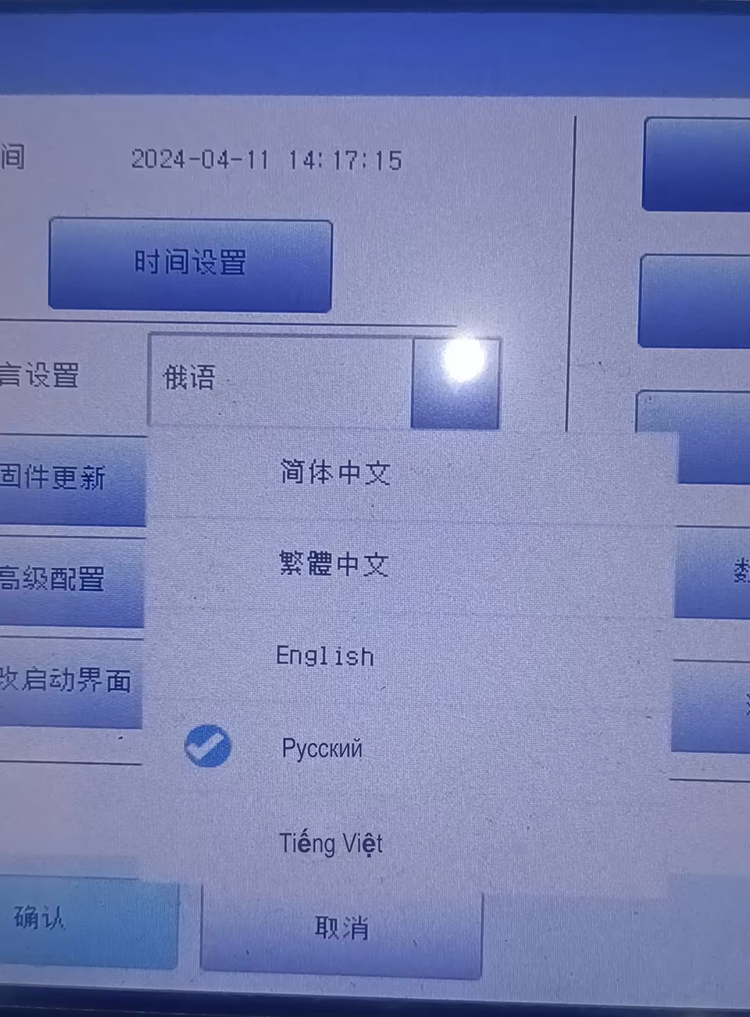

1. The system platform utilizes an intelligent marking controller with a user-friendly, easy-to-learn, and easy-to-operate software interface. It also provides testing functions for machine performance testing.
2. The system operates stably, the software is not prone to failure, and it can operate continuously for 24 hours.
3. The entire machine complies with electromagnetic compatibility design. Its modular design and layout facilitate disassembly, assembly, and maintenance.

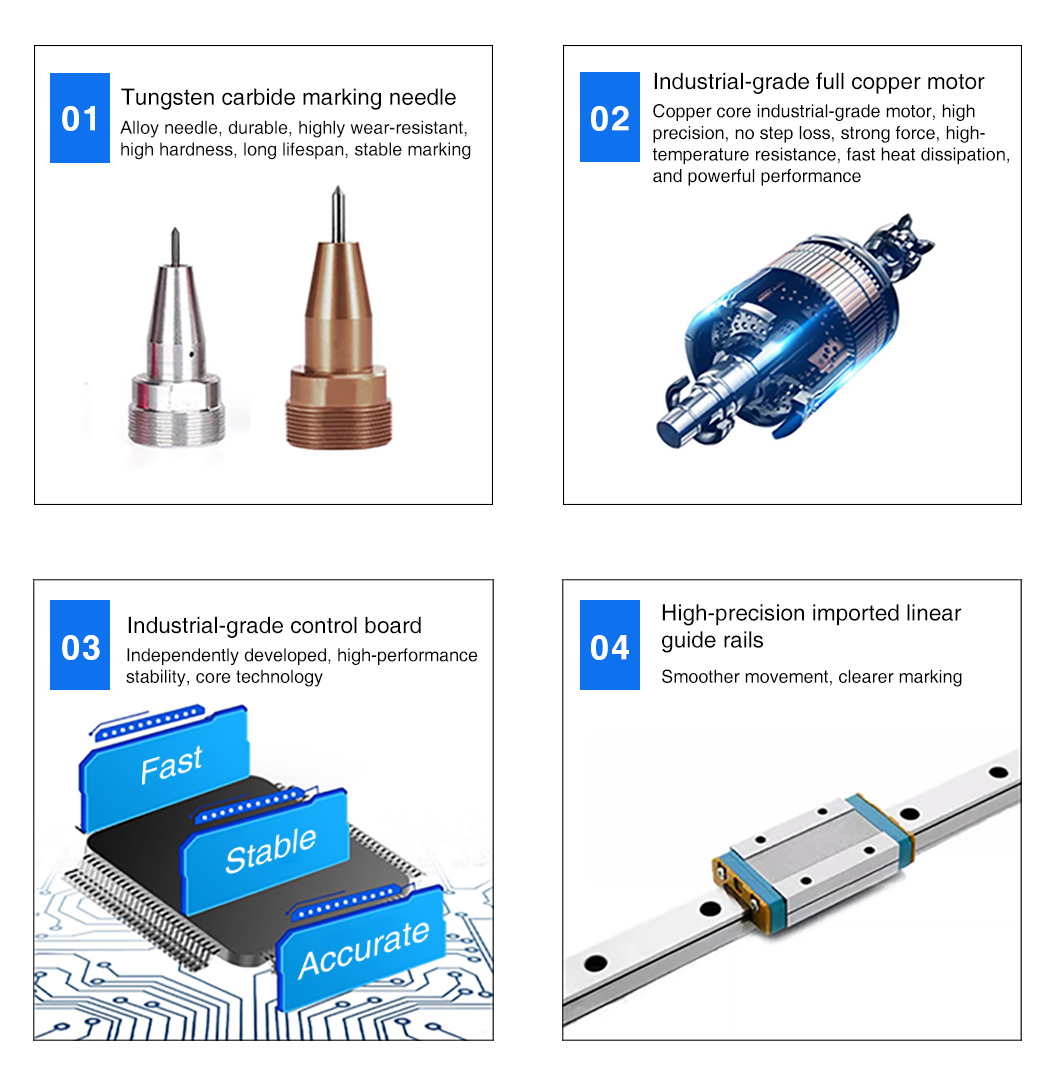

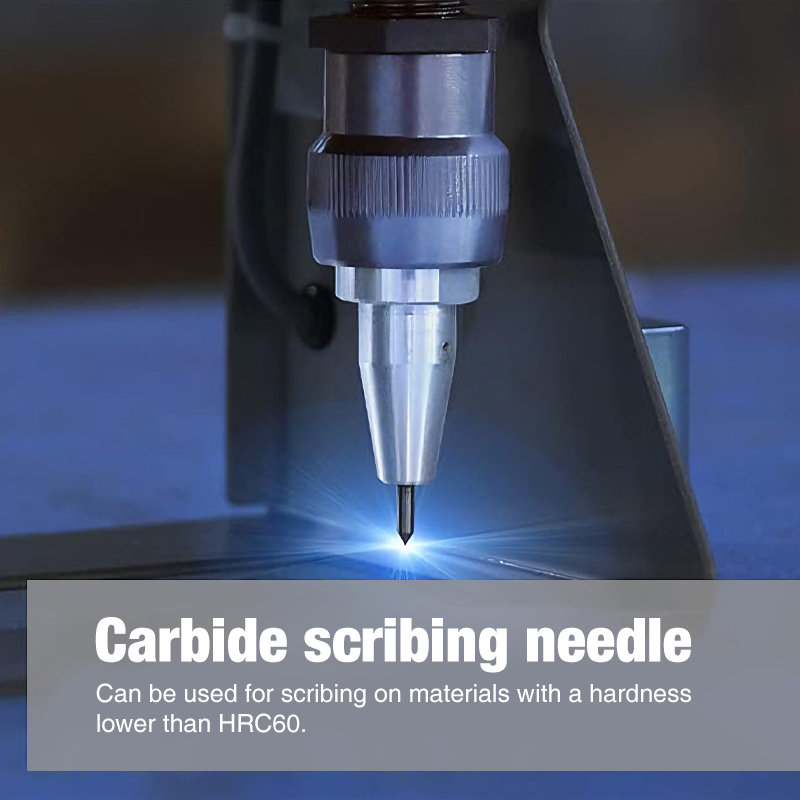

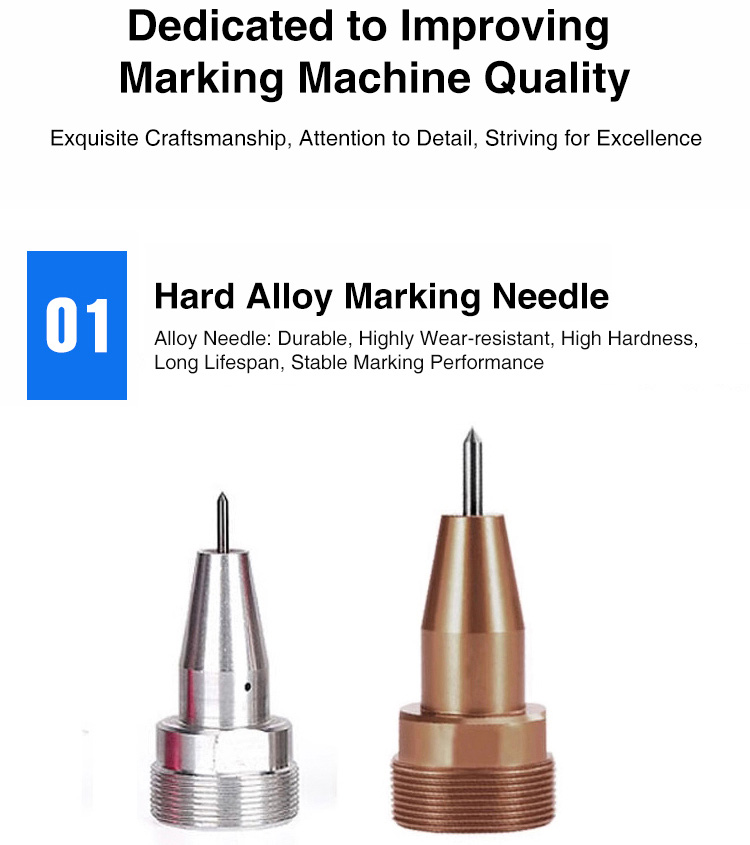

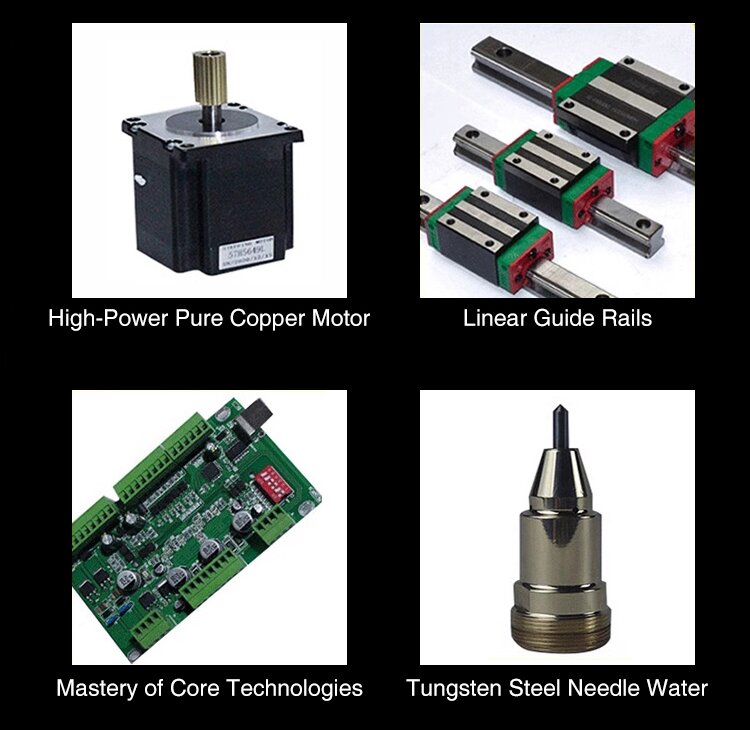

4. The marking needle is made of high-hardness alloy with a hardness of about HRC92. It has an average service life of up to 100,000 characters and can be repeatedly polished and reused.
| Laser wavelength | 200*100mm (can be customized according to customer's actual needs) |
| Print darkness | 0.01-1.0mm adjustable (depending on the material) |
| Print speed | 5-100 characters/minute |
| Printing direction | Top, bottom, left, right printing can be selected |
| Print Characters | Size and spacing can be adjusted flexibly |

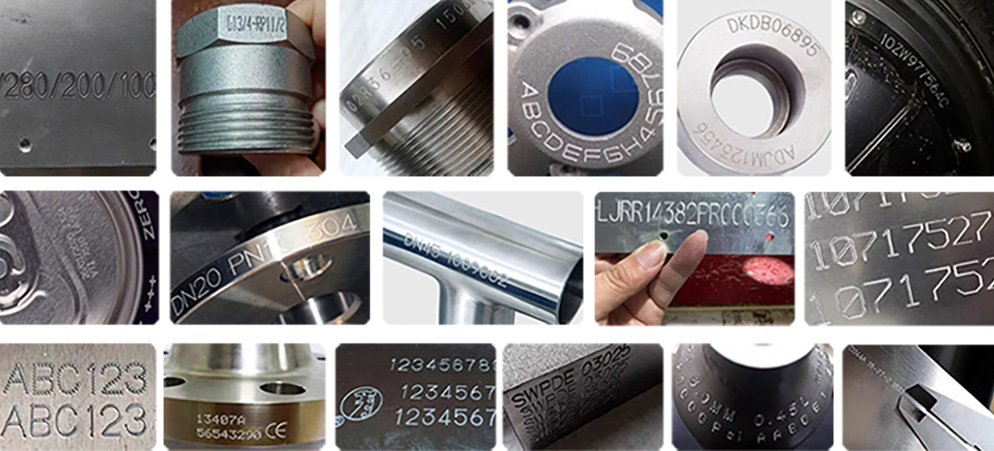

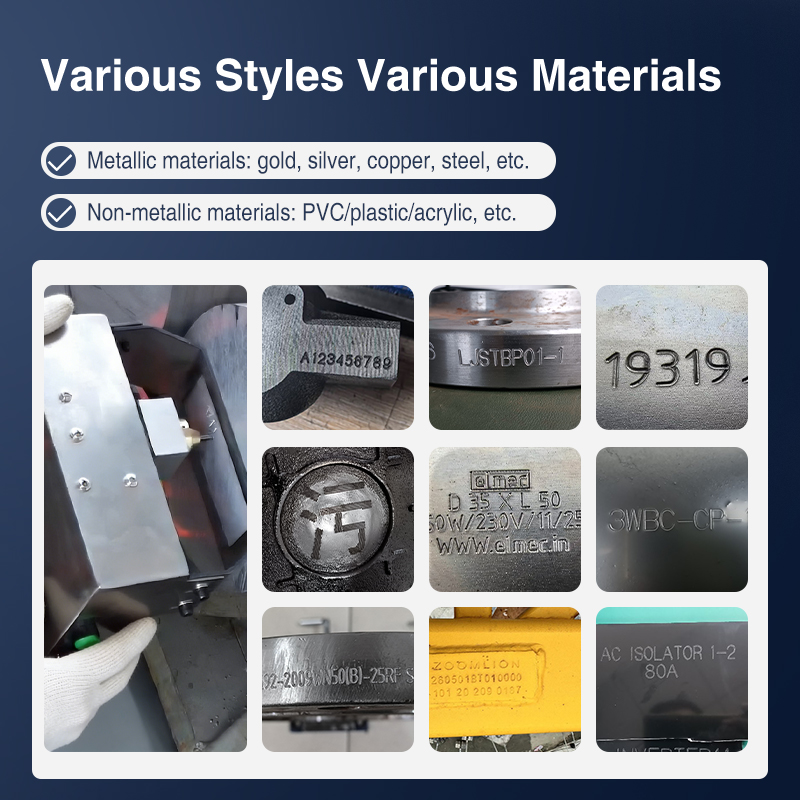

| Applicable workpiece | Copper, aluminum, iron, stainless steel and other metal parts can be used |
| Print input | Print input Manual input, barcode scanning |
| Power | 220V±10%V, 50±5%Hz, power consumption <300W |
| Repeatability | <0.1mm |
Machines tools engraving and marking
Automotive – VIN marking numbers and codes, serial numbers, etc.
Medical product and part marking.
Forge and cast marking.

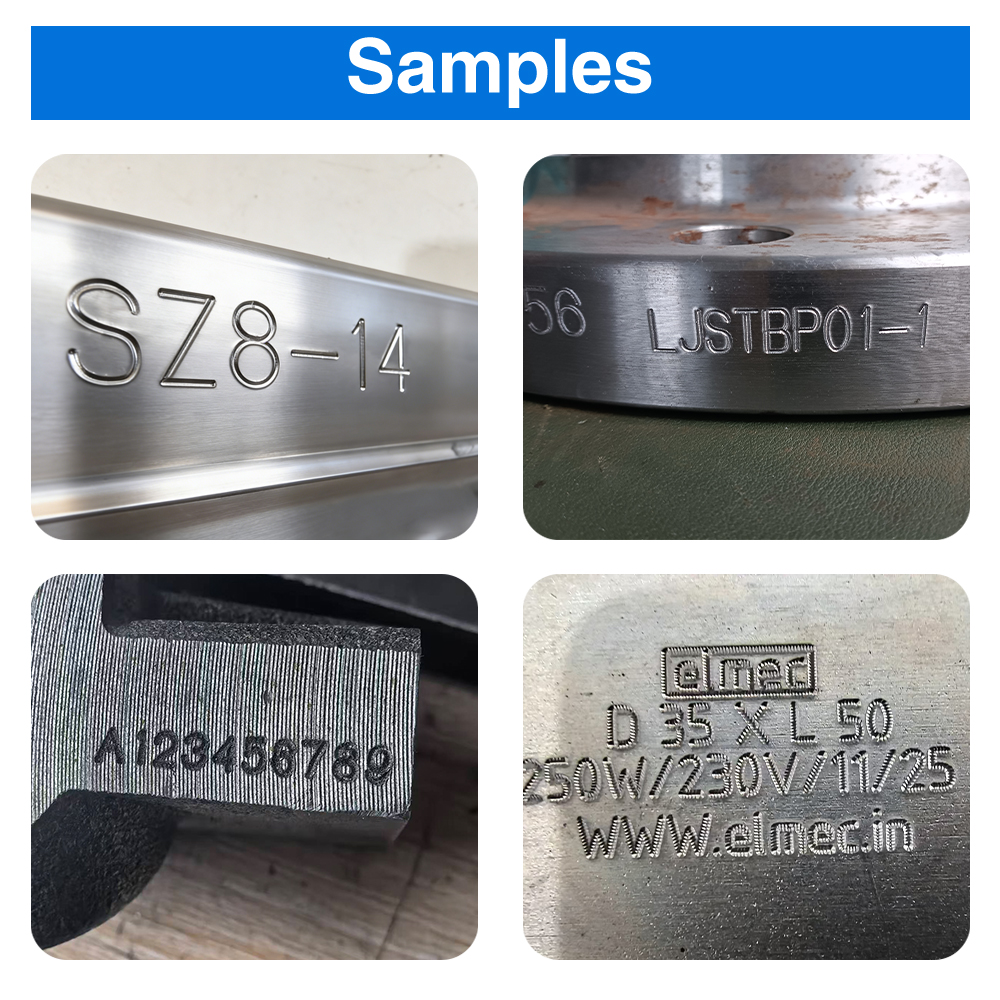

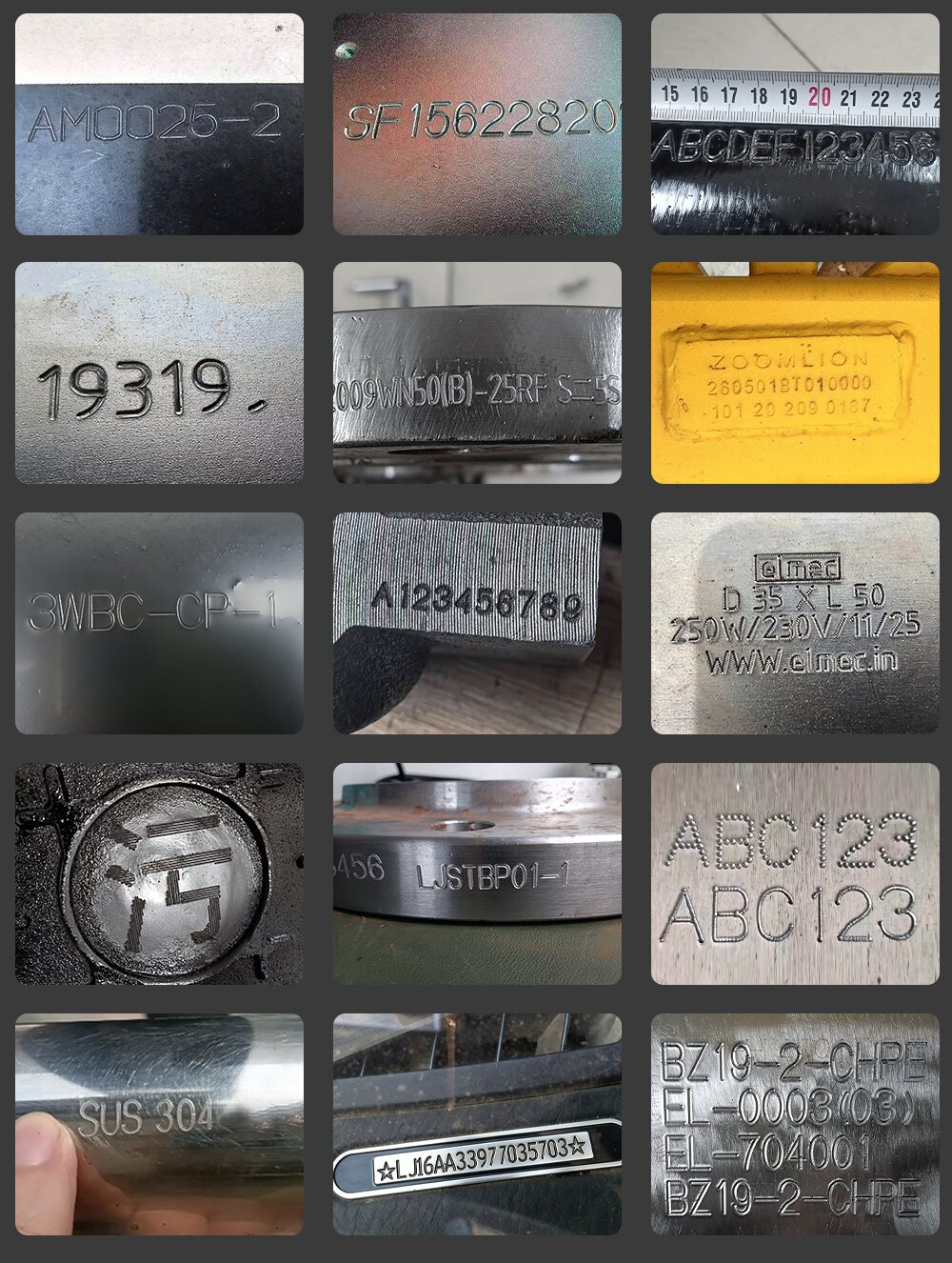

Metal processing marks on steel, copper, aluminum, etc.
Oil Field & Gas industry like pin stamping/marking on the steel pipes.
And many more process applications that help make the dot peen marker as an amazing marking tool.
