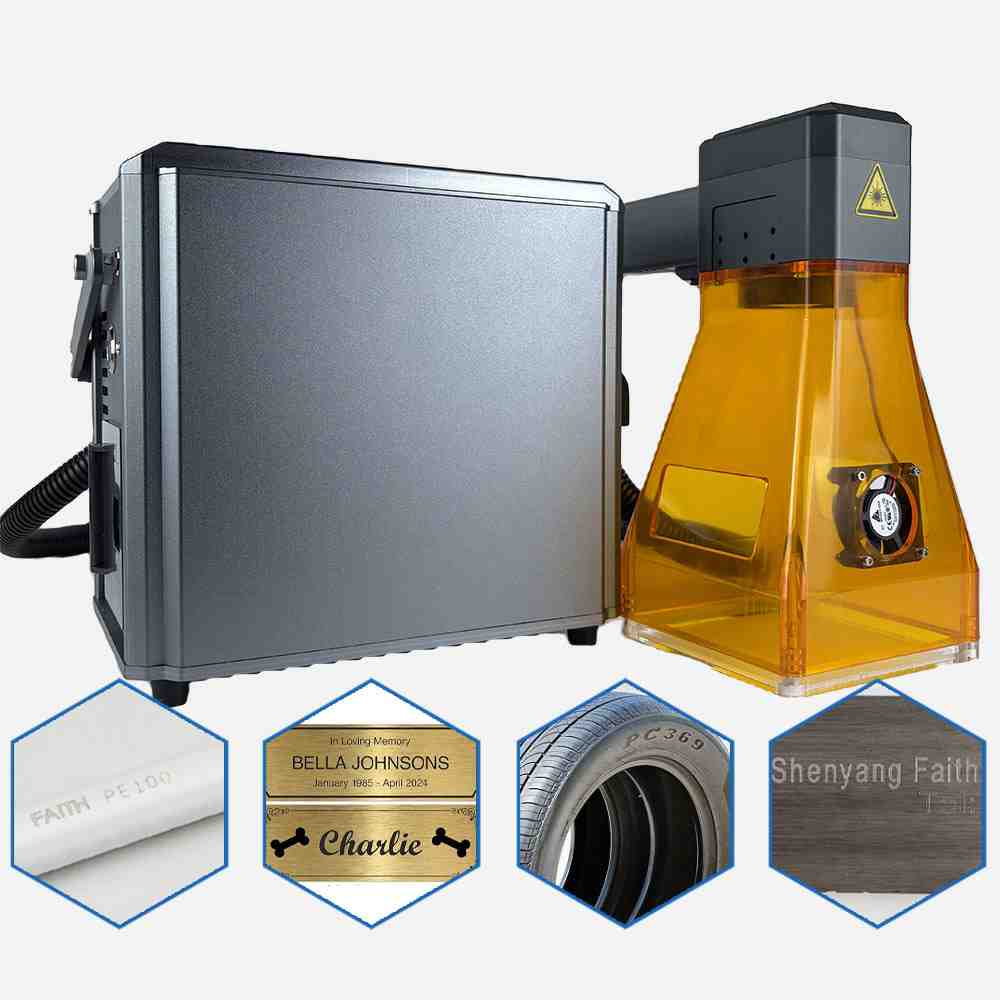

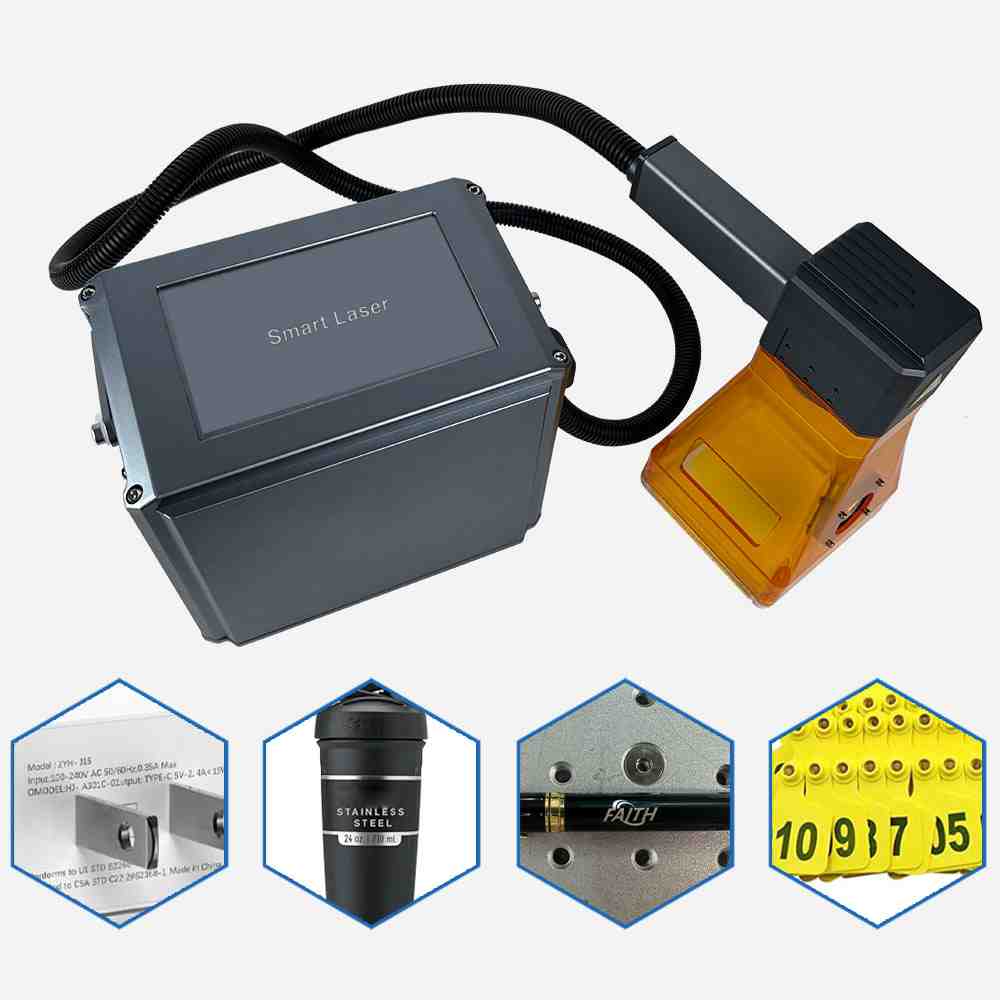

The 2025 handheld laser marking machine weighs 8.25KG (7KG for the body and 1KG for the marking head), is light and portable, and supports three modes: handheld, desktop, and flying. Equipped with a 1064nm fiber laser, the life span exceeds 100,000 hours, the power can be selected from 20W/30W/50W, the minimum line width is 0.0012mm, the marking speed is 0-130m/min, and the red light preview accuracy reaches 0.003mm.
Suitable for multiple materials such as stainless steel, aluminum, ABS, PVC, etc.
It can mark characters and patterns in the automotive, electronics, food, and pharmaceutical industries.
The 8-inch touch screen of the Linux system supports multi-format editing and multi-language operation.
With 16 certifications such as CE and RoHs, it provides 2 years of after-sales service and free proofing.
Email: [email protected]
The software is powerful and easy to use.

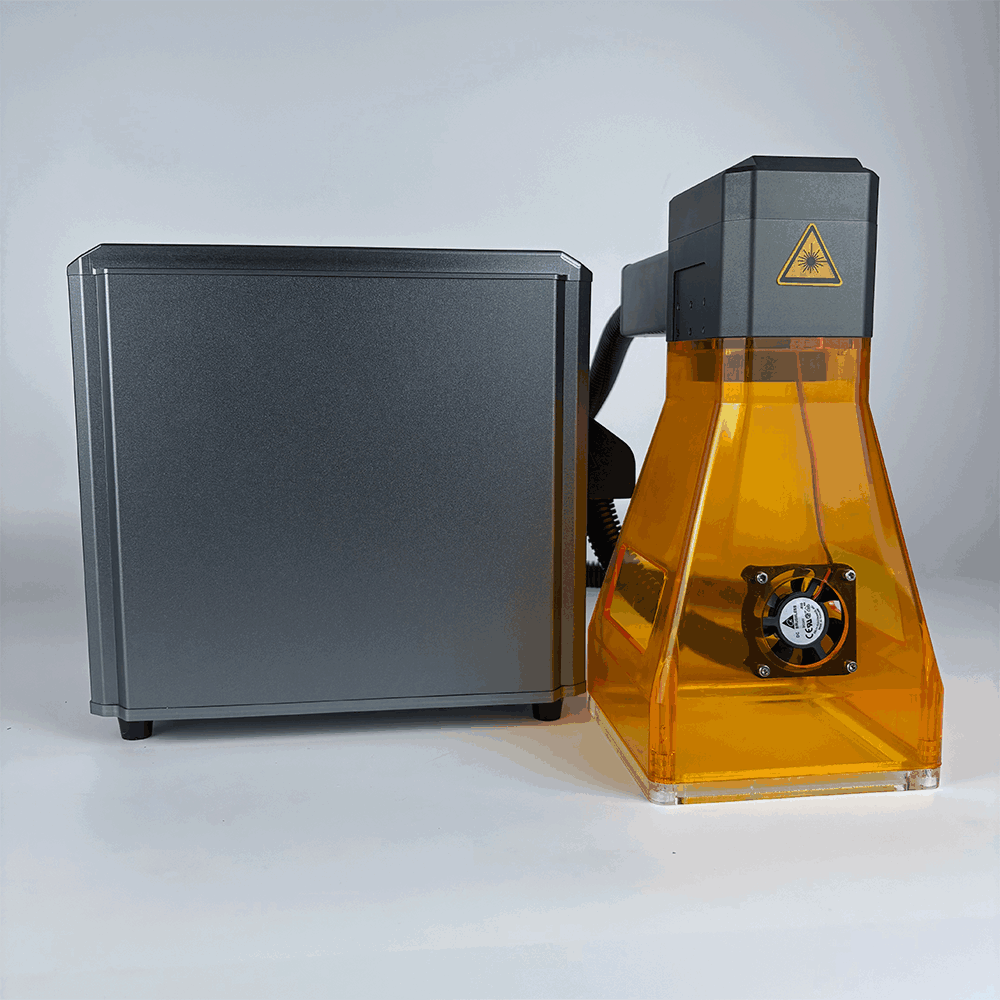

The integrated dark acrylic cover on the head protects the operator's eyes.
No maintenance required, no consumption, green and environmentally friendly.
| Laser | Fiber laser generator with a service life of more than 100,000 hours |
| Laser wavelength | 1064nm |
| Actual Output Power | 20W/30W/50W |
| Minimum Line Width | 0.0012mm |
| Marking Range | 75mm×75mm or 120×75mm or customizable |
| The line Speed | 0-130m/min (Depends on the material) |
Laser marking machines can be used on stainless steel, aluminum, copper, titanium, galvanized sheet, ABS, PVC, PP, PE, acrylic, tires, seals, glass, ceramics, wood, leather and paper, etc. It uses non-contact laser technology to ensure clear and beautiful markings, and is widely used in industrial manufacturing, packaging, decoration and artworks.
Automotive industry: markings on tires, engine parts, frames, etc.
Electronics industry: markings on circuit boards, housings, labels, etc.
Food industry: markings on packaging materials, production dates, traceability codes, etc.
Pharmaceutical industry: markings on drug packaging, medical devices, etc.
Crafts: personalized engraving, customized markings
"
For more information, inquiries or to request sample marking, please send an email to [email protected] or fill out the form:
