Electric marking machines are commonly used for industrial applications, portable operations, and engraving Vehicle Identification Numbers (VINs) on metal or hard plastics. They utilize a motorized pen tip to create permanent dot matrix, text, or graphic markings on metal or hard plastic. Compared to pneumatic systems, electric marking machines are more efficient and do not require a compressed air supply. These devices are ideal for marking, serializing, and encoding items, and typically offer adjustable marking depth and speed.
Email: [email protected]
WA: +8615710505044
1. The system platform utilizes an intelligent marking controller with a user-friendly, easy-to-learn, and easy-to-operate software interface. It also provides testing functions for machine performance testing.
2. The system operates stably, the software is not prone to failure, and it can operate continuously for 24 hours.
3. The entire machine complies with electromagnetic compatibility design. Its modular design and layout facilitate disassembly, assembly, and maintenance.
4. The marking needle is made of high-hardness alloy with a hardness of about HRC92. It has an average service life of up to 100,000 characters and can be repeatedly polished and reused.
| Laser wavelength | 200*100mm (can be customized according to customer's actual needs) |
| Print darkness | 0.01-1.0mm adjustable (depending on the material) |
| Print speed | 5-100 characters/minute |
| Printing direction | Top, bottom, left, right printing can be selected |
| Print Characters | Size and spacing can be adjusted flexibly |
| Applicable workpiece | Copper, aluminum, iron, stainless steel and other metal parts can be used |
| Print input | Print input Manual input, barcode scanning |
| Power | 220V±10%V, 50±5%Hz, power consumption <300W |
| Repeatability | <0.1mm |
Machines tools engraving and marking
Automotive – VIN marking numbers and codes, serial numbers, etc.
Medical product and part marking.
Forge and cast marking.

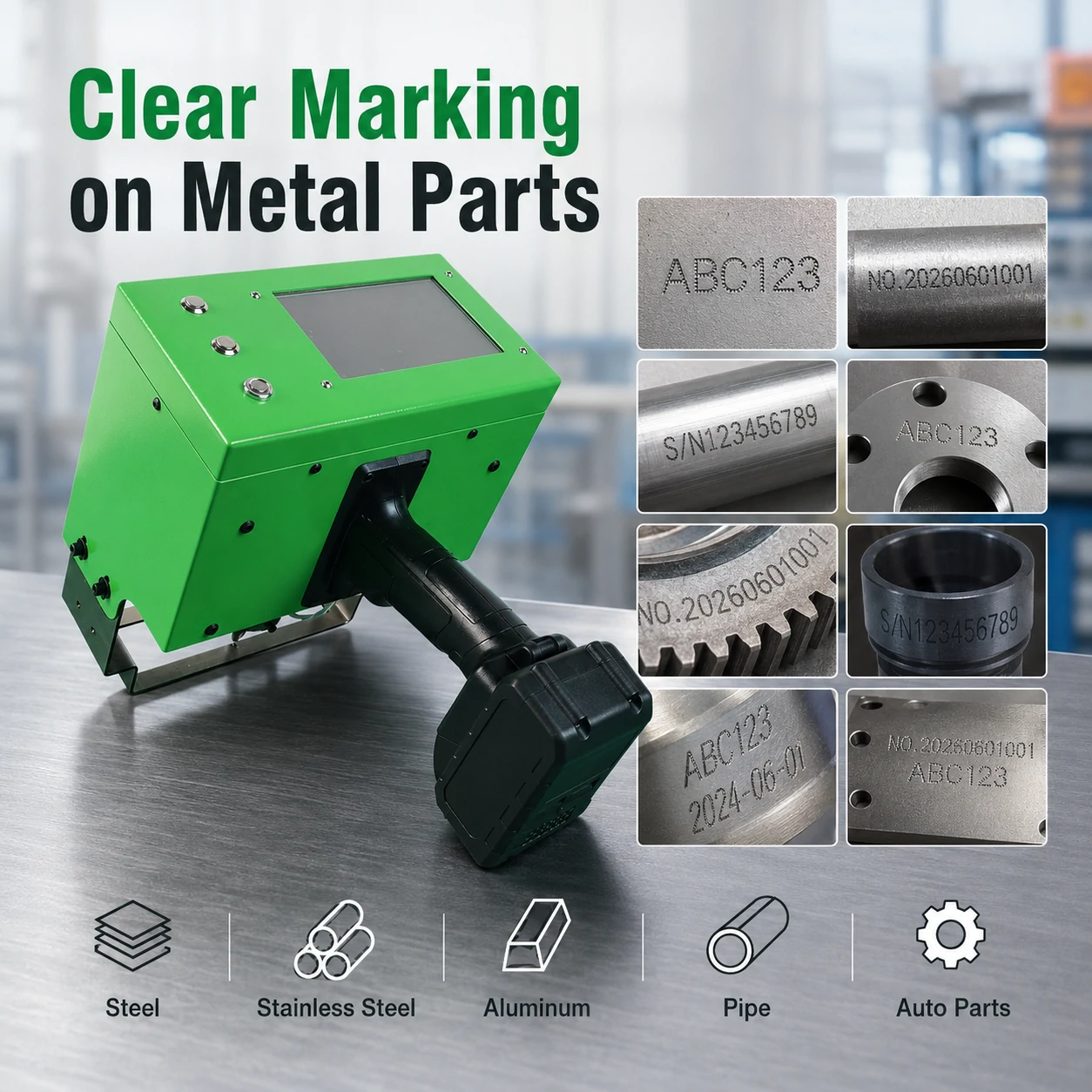

Metal processing marks on steel, copper, aluminum, etc.
Oil Field & Gas industry like pin stamping/marking on the steel pipes.
And many more process applications that help make the dot peen marker as an amazing marking tool.
