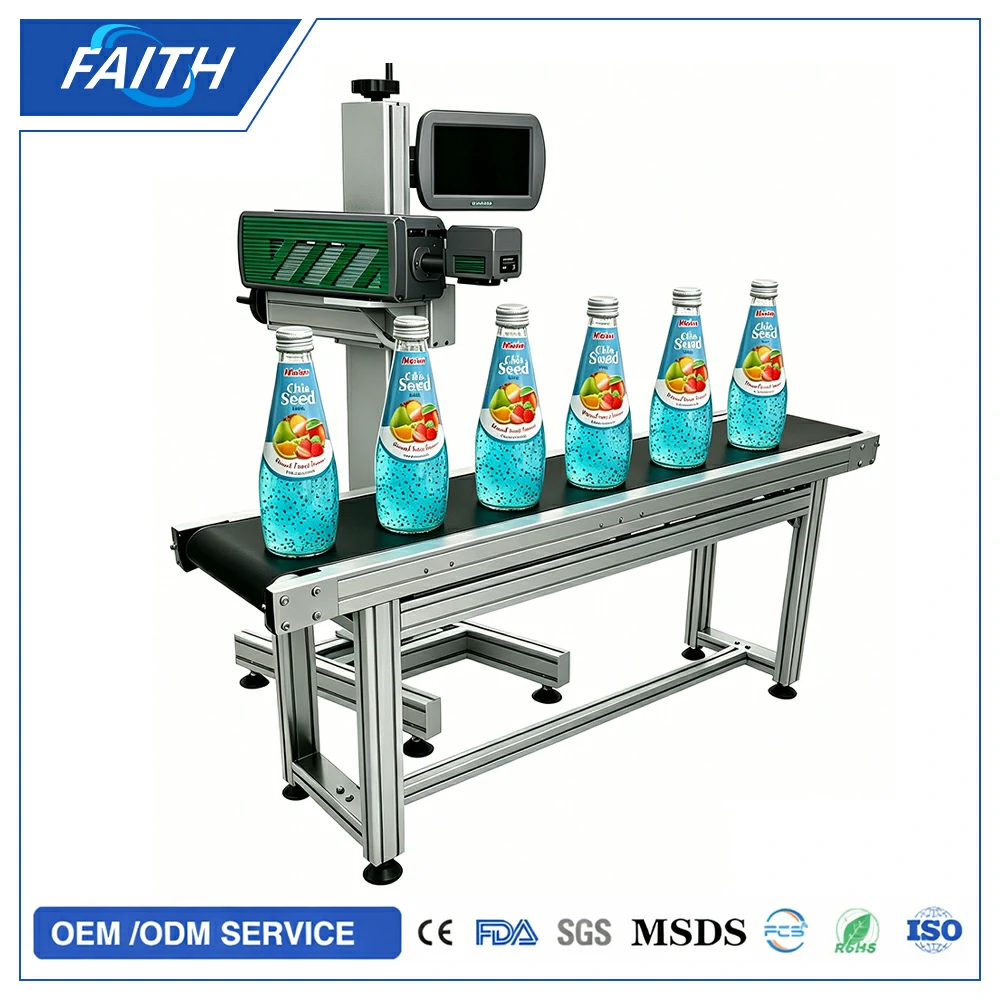

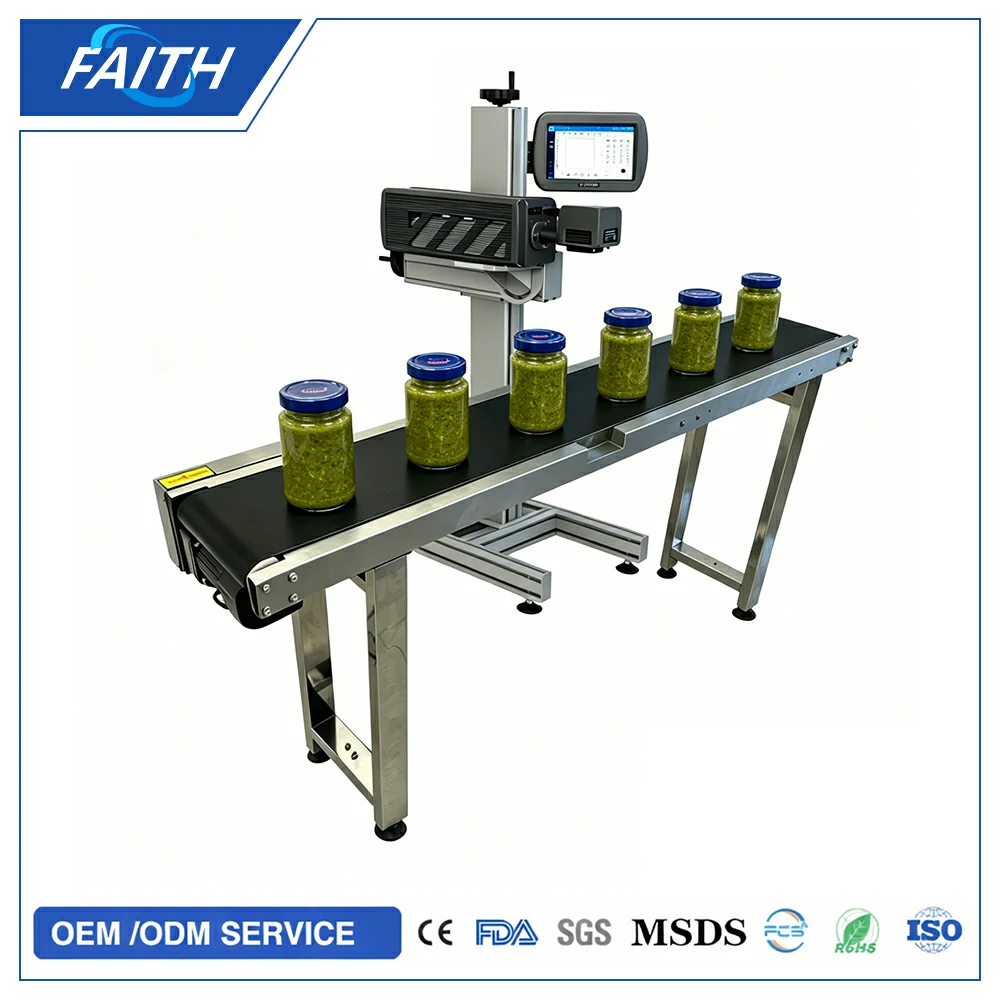

The CO2 Flying Laser Marking Machine is a high-performance coding solution designed for continuous production lines in the food and beverage industry. It is widely used for printing essential information such as production date, expiration date, batch number, QR codes, and barcodes directly on packaging materials without contact or consumables.
This system adopts advanced CO2 laser technology, making it especially suitable for non-metal materials such as plastic film, paper packaging, coated cartons, labels, and beverage bottles. During operation, the marking head works in sync with the production line, enabling stable and precise “flying marking” even at high speed.
Email: [email protected]
WA: +8615710505044
Super Precision:Marking Minimum 0.03mm
Low Energy:Consumption、no consumables、consumption
High-speed：marking、maximum marking、speed 14000mm/S
| Machine material | Sandblasted and anodized all-aluminum structure | ||
| Laser | Sealed metal radio frequency CO₂ laser generator | ||
| Laser wavelength | Standard 10.6um, optional 10.2um or 9.3um | ||
| Actual output power | CO₂-30W: ≥38W | CO₂-40W: ≥43W | CO₂-60W: ≥70W |
| Marking speed | ≤12000mm/s | ||
| Main control | 10.2-inch touch controller | ||
| Cooling system | 30/40W air cooling, 60W water cooling | ||
| Focus lens | Focal length 145mm | ||
| Minimum line width | 0.03mm | ||
| Repeat positioning accuracy | 0.01mm | ||
| Marking range | 110mm×110mm (optional) | ||
| Positioning method | Red light focusing | ||
| Number of marking character lines | Any number of lines within the marking range | ||
| Production line speed | 0~130m/min (depending on material) | ||
| Multi-language | English, French, Spanish, German, Chinese, Russian, Arabic, etc. | ||
| Management authority | Multi-user management authority | ||
| Operating system | Linux system | ||
| Marking mode | Three marking modes: static, analog, encoder | ||
| Reserved signals | Start printing, printing status, printing completed, fault alarm | ||
| Data protection | With power-off data protection function | ||
| Missed marking monitoring | Provide over-speed alarm function for false triggering caused by material reflection | ||
| Crossing point removal | Automatically remove crossing points to avoid overlapping marks | ||
| Code sending software | Able to realize single and dual machine code sending | ||
| Fonts | Standard font libraries such as Chinese, English, numbers, traditional Chinese, etc. | ||
| File formats | BMP/DXF/HPGL/JPEG/PLT | ||
| Barcodes | CODE39, CODE128, CODE126, QR, 真知码 (optional) | ||
| Power supply | 220V/50HZ | ||
| Power consumption | 800W | ||
| Machine net weight | 30/40W laser machine part: 14kg; 60W: 23kg; Flight bracket part: 30kg | ||
| Overall dimensions | 30/40W machine head: 666X160X165mm; 60W machine head: 850X160X165mm | ||
| Environment Requirements | External temperature 0℃—45℃; Humidity ≤95%; Non-condensing; No vibration | ||
| Serial Number | Name | Quantity |
| 1 | Laser machine equipment | 1 unit |
| 2 | Control system | 1 unit |
| 3 | Photoelectric Sensor | 1 piece |
| 4 | Synchronizer | 1 piece |
| 5 | Flight bracket | 1 unit |
| 6 | Debugging toolbox | 1 piece |
| 7 | Instruction manual, warranty card, certificate of conformity | 1 copy each |
| Serial Number | Name |
| FCC | Federal Communications Commission Certification |
| CE | Conformité Européenne Certification |
| ISO9001 | International Organization for Standardization 9001 Quality Management System Certification |
| ROHS | Restriction of Hazardous Substances Directive |
| FDA | Food and Drug Administration Certification |
| Serial Number | Subsystem Name | Model | Quantity |
| 1 | Laser | CO₂-40/60 | 1 unit |
| 2 | Galvanometer | ZB2D10C10600 | 1 piece |
| 3 | Field lens | JGZL1-150-110-8 | 1 piece |
| 4 | Beam expander | JG-BEX-4C | 1 piece |
| 5 | Power supply | S600-48W | 1 unit |
| 6 | Software control system | external control screen | 1 unit |
| 7 | Photoelectric switch | FZ2-22N | 1 piece |
| 8 | Synchronizer | 38S6-2500 | 1 piece |
| 9 | Dual red light focusing | ZB2D10C10600 | 1 set |
| 10 | Filter | CW2B-10A | 1 unit |
| 11 | 2D bracket | SY02415-1500 | 1 set |
CO2 laser marking machines are widely used in industries such as pharmaceuticals and food packaging, primarily for key applications such as production date marking and anti-counterfeiting label creation. This equipment supports automatic marking of text information such as codes, serial numbers, batch numbers, and dates, while also being compatible with generating graphic codes such as barcodes and QR codes, accurately matching the diverse marking needs of customers in different industries.
