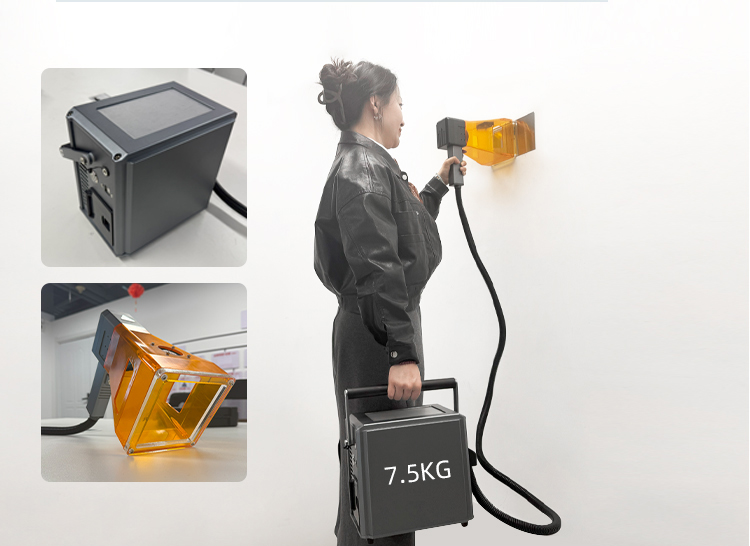

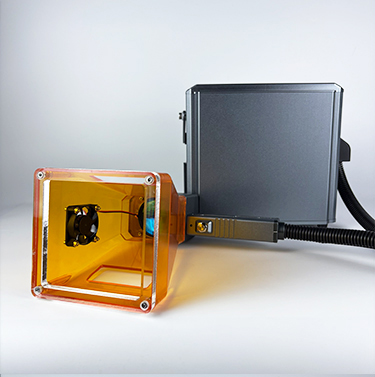

The Faith handheld laser marking machine features a lightweight design (8.25 kg for the entire machine, 1.25 kg for the marking head) and can be flexibly operated with one hand, breaking the limitations of traditional fixed-type equipment and easily handling large workpieces, complex angles, and outdoor applications. Equipped with a high-performance fiber laser (available in 20W, 30W, or 50W) and precisely focused at a 1064nm wavelength, it is suitable for metals such as stainless steel, aluminum, and titanium, as well as some non-metallic materials. Marking speeds reach up to 12,000 mm/s, with an accuracy of 0.003 mm and a minimum line width of 0.0012 mm, achieving industrial-grade precision marking.
The device features an 8-inch touchscreen, supports Linux, and is compatible with file formats such as PLT, DXF, and BMP. It can generate complex content such as serial numbers, QR codes, and dates with a single click. An optional built-in high-capacity battery provides 12-16 hours of battery life, enabling wireless operation and eliminating the need for power constraints. Its air-cooled design ensures long-term stable operation, making it suitable for harsh environments such as workshops and construction sites.
Email: [email protected]
 |

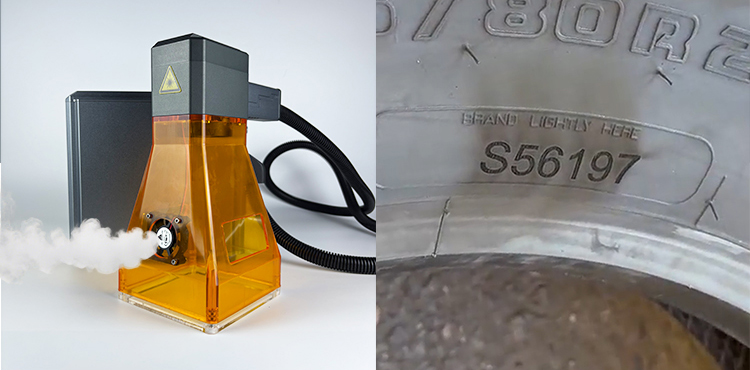

INTEGRATED EXHAUST SYSTEM
Significantly reduces smoke generated when marking on-metal materials. |
 |
|
| Laser | Fiber laser generator with a service life of more than 100,000 hours |
| Laser wavelength | 1064nm |
| Actual Output Power | 20W/30W/50W |
| Minimum Line Width | 0.0012mm |
| Marking Range | 75mm×75mm or 120×75mm or customizable |
| The line Speed | 0-130m/min (Depends on the material) |
Laser marking machines can be used on stainless steel, aluminum, copper, titanium, galvanized sheet, ABS, PVC, PP, PE, acrylic, tires, seals, glass, ceramics, wood, leather and paper, etc. It uses non-contact laser technology to ensure clear and beautiful markings, and is widely used in industrial manufacturing, packaging, decoration and artworks.
